Monday, February 20, 2012

Analysis of a Blackhole Exploit page

The Blackhole Exploit kit is still a very popular attack on the web. They are many variants of the threat. Here is a detailed analysis of one Exploit kit page and the obfuscation technique leveraged by the attack.

In this example, the exploit is heavily obfuscated. The exploit has been encoded and stored as HTML and JavaScript is used to decode the payload and run it.

Blackhole Exploit encoded ans stored in HTML

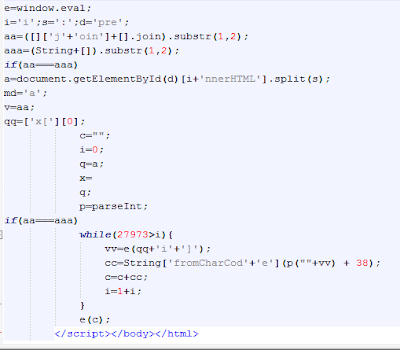

JavaScript decoding loop
To decode the exploit, I used Malzilla, a popular JavaScript deobfuscation tool. Malzilla cannot manipulate the DOM like a real web browser, so I needed to copy and past the HTML-encoded data into a JavaScript variable. I then changed the JavaScript loop slightly, to extract the data from the variable instead of the HTML. Instead of doing an eval() of the code, I replaced the last line with document.write(c) to output the result.

The code below was delivered by Malzilla following the aforementioned adjustments (I've cut out the encoding data):

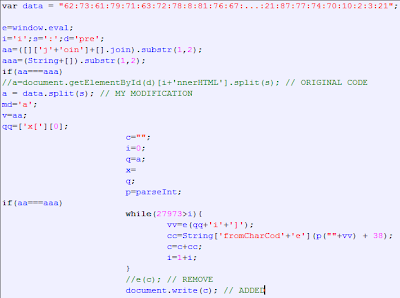

Modified code to run in Malzilla

I can now execute the script. The obfuscation requires many passes to fully decode the data andit takes quite a while to complete.

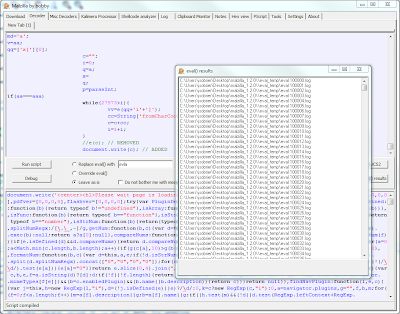

Script executed by Malzilla
Now, let's examine the output from Malzilla. The first part addresses a "Please wait page is loading..." message, very typical of the Blackhole Exploit kit so that the victim remains patient while the exploit code executes.


Then, the JavaScript figures out which browser is visiting the page, what plugins are installed and with which version. This is subsequently to decide which exploit payloads to deliver.

Browser fingerprinting
Depending on what browser information was obtained, different exploits can be delivered. It could for example be a malicious Java applet:

Launch a malicious Java applet
... or a remote code execution targeting a known Internet Explorer vulnerability:

MDAC exploit for Internet Explorer
.. or a malicious PDF file:

Malicious external PDF file
... or a malicious Flash file:

Malicious Flash file

Separating the exploit into an encoded payload and a decoding loop made it easier for the exploit kit creators to create an infinite array of different pages in order to evade detection. The Exploit kit is also more sophisticated than many other exploits as it is able to use the right exploit for each visitor.

6 comments:

Unknown said...

Nice analysis and breakdown of the exploits in Malzilla.

Speaking of Blackhole this was a fun run of javascript pulled from a kit: http://wepawet.iseclab.org/view.php?hash=4bb5c0ea61443185406fa062237525bc&type=js

-Paul
@demon117

Anonymous said...

They also use some interesting tricks in the shellcode payloads.

http://prezi.com/orvib3zptijr/blackhole-payload-preview/

r9s said...

nice

loks said...

Great write up. So is clicking on a link which arrives in an email the only attack vector? Have you guys noticed any other attack vectors?

Julien Sobrier said...

@loks E-mail is one vector of attack, but also hijacked sites to target their regular users, or using Blackhat SEO techniques to poison search results.

yewchuan said...

What you think about jsunpack.jeek.org, is it as useful as Malzilla?
